Topic: Midi Fighter Clone v2.0 DIY Thread

I'm posting this in hopes more of you guys will embark on creating your own controllers, it is a fun process and you can make them do what you want, have your own custom control layout, and they are way cheaper than pro controllers you guys have a lot of creativity! If you decide to make a controller post it up here as not only I, but other people would love to see it as well smile

So as many/all of you may know I have made a working controller just a basic 16 button, no leds, no extra knobs. I have decided to do a another revised version that will look a little more professional. below I will post the "overview of the first build and be deleting the previous thread followed by a post starting v2.

ok so its done! Here is a recap of everything and the final product big_smile

Here is what you will need:

1. An Enclosure (not gonna count that in the cost cause the sky is the limit)
2. A Teensy++ 2 (it can act as a plug and play midi controller, witch is totally a +) -$50cad
3. Arcade Buttons (I chose 30mm Sanwa OBSF Buttons, StreetFighter games are still kicking 25 years later..) -52$cad
4. Prototyping boards (I chose these nice blue ones from ebay, they were $1 a pop, came in a 10 pack.) -$10cad

http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/IMAG0424_zpszrlbibhn.jpg
http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/IMAG0410_zps1janyt4v.jpg

Total Cost (for the important bits): $112.00CAD

1. Make an enclosure

http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/My%20Snapshot1_zpsixq9xyuq.jpg

2. Cut your holes, I will post up the 24mm AND 30mm hole diagrams below so if you want to do this you can avoid spacing them wrong sad And don't slip... it hurts!

http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/IMAG0415_zpskbq3vn7x.jpg
http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/IMAG0416_zpsptxsx7a5.jpg
http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/IMAG0437_zpsfdn4vul7.jpg

Here is the 24mm diagram. When printed/cut out it is a 6" x 6" square.

http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/MidiFighter%20Hole%20Lay%20out.norm_zpsim2lehss.jpg

Here is the 30mm diagram. Also 6" x 6" when printed. *NOTE* I had to make this one and getting it to print the right size was a pain tongue

http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/buttons%202_zpsbl8nsq63.png

Push your buttons in (depending on thickness of case you may need to file the surface thinner so the buttons "grabbers" can do what they are supposed to)

http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/IMAG0429_zpssahqajx5.jpg
http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/IMAG0426_zpsrte0xou9.jpg

Solder the teensy to your Prototyping board

http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/IMAG0431_zpseymwcwo1.jpg

Connect 1 of the pins on ALL the buttons (this will go to the GROUND of the Teensy++)

http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/IMAG0432_zps02akohef.jpg

Make a bunch of little wires, and connect them Right below this will be the pins you need to connect to Use the diagram that came with your Teensy to figure it out.

http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/IMAG0433_zpsljvqeyhp.jpg

(there are other ways of connecting led's I may explain that in PART - 2 of this build)

CONNECT LED(s) TO PIN(s) 20, 21, 22

CONNECT KNOB(s) TO PIN(s)  A2, A3, A0, A1

CONNECT FADER(s) TO PIN(s) A7, A6, A5

CONNECT BUTTON(s) TO PIN(s)

  5, 9, 13, 17,  <---first row
  4, 8, 12, 16,
  1, 7, 11, 15,
  0, 6, 10, 14

Download These (all from my media fire)

Follow installation/setup instructions for teensy++ here: https://www.pjrc.com/teensy/tutorial.html

Teensy Mini Computer Utility
http://www.mediafire.com/download/2e47g … teensy.exe

TeensyDuino
https://www.mediafire.com/?le3qm3v7ybtywh4

Serial Installer Win
http://www.mediafire.com/download/qtg6r … nstall.exe

Arduino 1.0.6 Win (IT HAS TO BE THIS VERSION # for teensyduino to work) http://www.mediafire.com/download/nll19 … indows.exe

Midi Biter - Midi Controller Code (copy text in to Arduino Software click verify and download)
UPDATED CODE BELOW

After all that you should have at LEAST something like this!:

[media]http://youtu.be/GkyGKhsJWYM[/media]
http://i1167.photobucket.com/albums/q628/Lamilton_Teashawn/IMAG0434_zpsq00ienx6.jpg
------------------------------------


See below for V2.0
VVVVVVVVVVVVVV


------------------------------------

"Dude it sucked.. I was all jammin and then *bam!!!!* I got punced in the colon from the inside.."
"If you stay 20 years behind of everyone, you are automatically 10 years ahead."
https://www.youtube.com/channel/UCqCkqm … 66koJYb-fA

Thumbs up +2 Thumbs down


Deprecated: Function create_function() is deprecated in /homepages/5/d393721214/htdocs/forum.launchpad-pro.com/include/parser.php on line 811

Deprecated: Function create_function() is deprecated in /homepages/5/d393721214/htdocs/forum.launchpad-pro.com/include/parser.php on line 811

Deprecated: Function create_function() is deprecated in /homepages/5/d393721214/htdocs/forum.launchpad-pro.com/include/parser.php on line 811

Deprecated: Function create_function() is deprecated in /homepages/5/d393721214/htdocs/forum.launchpad-pro.com/include/parser.php on line 811

Deprecated: Function create_function() is deprecated in /homepages/5/d393721214/htdocs/forum.launchpad-pro.com/include/parser.php on line 811

Deprecated: Function create_function() is deprecated in /homepages/5/d393721214/htdocs/forum.launchpad-pro.com/include/parser.php on line 811

Deprecated: Function create_function() is deprecated in /homepages/5/d393721214/htdocs/forum.launchpad-pro.com/include/parser.php on line 811

Deprecated: Function create_function() is deprecated in /homepages/5/d393721214/htdocs/forum.launchpad-pro.com/include/parser.php on line 811

Deprecated: Function create_function() is deprecated in /homepages/5/d393721214/htdocs/forum.launchpad-pro.com/include/parser.php on line 811

Deprecated: Function create_function() is deprecated in /homepages/5/d393721214/htdocs/forum.launchpad-pro.com/include/parser.php on line 816

2 (edited by robtapps 2015-03-05 23:16:58)

Re: Midi Fighter Clone v2.0 DIY Thread

Midi Controller V2.0

Here is the supplies I will be using in the Full version of this controller.

Teensy2++: $50CAD
*Shown Above*

16x 24mm White Sanwa buttons: $50CAD
*Shown above in different size and colour*

10x Prototyping boards from ebay: $10CAD
*Shown above, GET MORE THAN ONE, do the WIRING FIRST then solder the TEENSY LAST*

300x 3MM led kit from ebay: $10CAD
http://thumbs4.ebaystatic.com/d/l225/m/mG6ISzcvIiCjZLxwZ_cGZcg.jpg

Cheap ebay ALPS 60mm Faders w/ dust covers: $10CAD ea.
http://thumbs4.ebaystatic.com/d/l225/m/mM5CEHs6avoaVSuWpmreMcA.jpg

10x ebay B10K Ohm Linear Taper Rotary Potentiometer: $3CAD
http://thumbs1.ebaystatic.com/d/l225/m/mBhHSR8yVBJ8B9fUg7lomZQ.jpg

2x 240pc wires male to female ebay: $2CAD ea
http://thumbs4.ebaystatic.com/d/l225/m/mBohkdCOeRKV0TIYLghMkIA.jpg

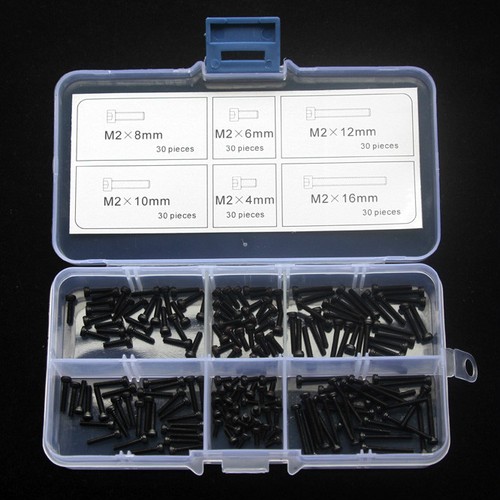

180pc M2 hex head screw ebay kit: $10CAD
